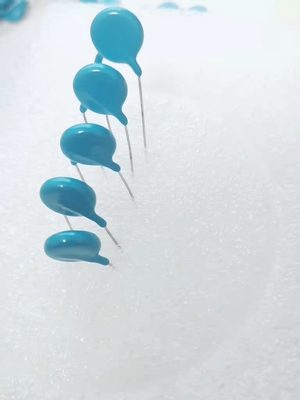

Productdetails:
|
| Materiaal: | Ceramisch | Pakkettype: | Door Gat |
|---|---|---|---|
| ated Voltage: | 300v AC | Werkende temperatuur: | -25 ~125℃ |
| Isolatieweerstand: | IRL ≥ 10000MΩ | Capacitieve weerstandstolerantie: | ± 20% |
| Capacitieve weerstand: | 3300PF | Lood het Uit elkaar plaatsen: | 7,5 mm |
| Kleur: | Blauw | ||
| Markeren: | Vuurvaste Ceramische Veiligheidscondensator,300V ceramische Veiligheidscondensator,De anticorrosieve Ceramische Condensatoren van HV |
||
| Productparameters | |
| De Norm van de specificatieverwijzing | CEI 60384-14; EN 60384-14; CEI UL60384; K 60384 |
| Goedgekeurd Monogram | VDE /KTL/UL/CQC |
| Subklasse; Nominale spanning (UR) | X1 / Y1/Y2; 400VAC /300VAC |
| Capacitieve weerstandswaaier | 100pF aan 10000pF |
| Voltagebewijs | 4000VAC voor 1min/2000VAC voor 1min/1800VAC voor 1min |
| Capacitieve weerstandstolerantie | Y5P±10% (K); Y5U, Y5V±20% (M) gemeten bij 25℃, 1Vrms, 1KHz |
| Dissipatiefactor (tgδ) | Y5P, Y5U tgδ≤2.5%; Y5V tgδ≤5% bij 25℃, 1Vrms, 1KHz wordt gemeten die |
| Isolatieweerstand (IRL) | IR≥10000MΩ, 1min, 100VDC |
| Werkende Temperatuur | -40℃ aan +85℃; -40℃ aan +125℃ |
| Temperatuurkenmerk | Y5P, Y5U, Y5V |
| Vlam - vertrager Epoxy | UL94-V0 |
| 型号 | 宽度 | 厚度 | 脚距 | 引线 | 电压 | 容量 | 材料 | 容差 |
| Y2-103M-Y5V | φ13mm | T3.8mm | F10mm | L3-22mm | 300V [**] C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | φ9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | φ13mm | T3.8mm | F10mm | L3-22mm | 300V [**] C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | φ11mm | T3.8mm | F10mm | L3-22mm | 300V [**] C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | φ8mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V [**] C | 100pF | Y5P | ±10% |
Toepassing:
1. Het is geschikt voor de kring van de lawaaiafschaffing van voedingkring van elektronisch materiaal
2. Kan in antennekoppeling en omleidingskring worden gebruikt
3. Controlebord van diverse kleine huishoudapparaten
4. Machtsfilter
5. Hoge frequentieac lading
6. Omschakelingsvoeding
7. Elektronische ballast
8. LEIDENE bollen
